15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines

100
MOQ
$99-120
prezzo
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Corrente nominale: 10-200
Tensione nominale: 10-220
Trattamento superficiale: Galvanizzazione a caldo
Tolleranza delle dimensioni: + - 2%
Norma di saldatura: AWS D 1,1
Norma di galvanizzazione: ASTM A 123
Capacità di produzione: 300 pezzi al giorno
Materiale: Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Gamma di potenza: 10 KV ~ 550 KV
Fattore di sicurezza: 8 Per condurre il filo, 8 per il filo di terra
Carico di progettazione: 300 ~ 1000 kg applicati a 50 cm dal palo superiore
Velocità del vento: 160 km/ora (30 m/s)
Carico di snervamento minimo: MPa 355
Resistenza alla trazione minima: MPa 490
Resistenza alla trazione massima: mpa 620
Evidenziare:

15m Steel Utility Power Pole

,

2.75mm Thickness Steel Utility Power Pole

,

850kg Load Steel Utility Power Pole
Informazioni di base
Luogo di origine: Jiangsu, Cina
Marca: MilkyWay
Numero di modello: pali elettrici in acciaio, palo elettrico
Termini di pagamento e spedizione
Descrizione di prodotto
15m Tapered Steel Utility Power Poles
2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN
Product Specifications
Type Octagonal NGCP 69KV Galvanized electric steel power pole
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, Polygonal or Conical
Material Q345B/A572 (minimum yield strength ≥345N/mm²), Q235B/A36 (minimum yield strength ≥235N/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Power Rating 10KV ~550KV
Safety Factor 8 for conducting wire, 8 for grounding wire
Design Load 300~1000kg applied to 50cm from top pole
Surface Treatment Hot dip galvanized (ASTM A 123) or color polyester powder coating
Wind Resistance 160 km/hour (30 m/s)
Standards ISO 9001

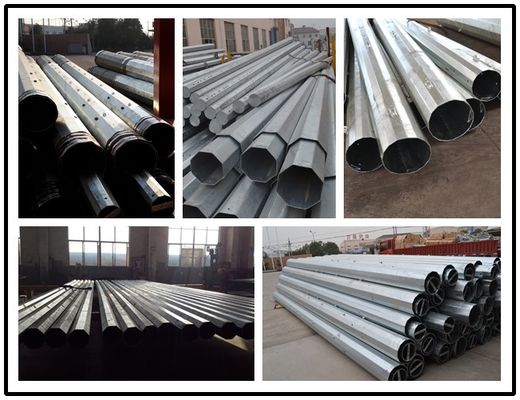

Production Process
As a BV, ISO, SGS approved supplier in China with over 20 years of experience, we guarantee high-quality steel poles manufactured from qualified materials by professional workers using advanced equipment.
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 0
Raw material test → Cutting → Molding/Bending → Welding (longitudinal) → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization/Powder coating/Painting → Recalibration → Threading → Packaging

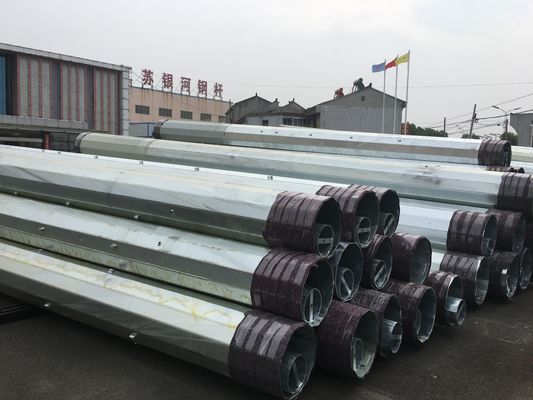

Material Quality Assurance
All materials are sourced from reputable mill factories. Each shipment includes a mill certificate with stamp and signature. Materials undergo chemical and physical analysis before production to verify strength and composition.
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 1
Certifications
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 2

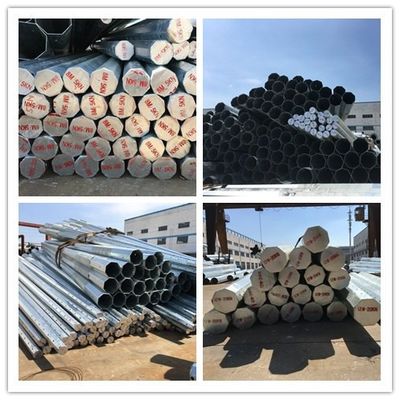

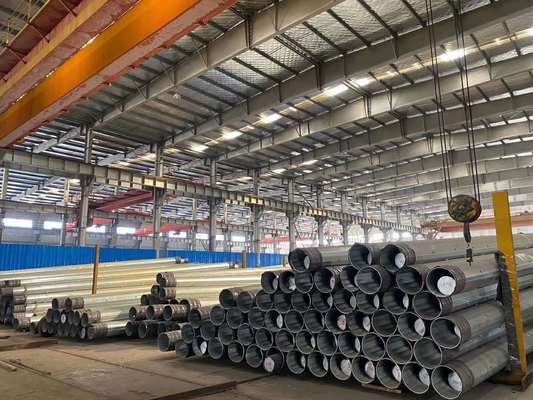

Project Examples
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 3 15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 4
Ordering Information
  • Price Terms: EXW, FOB, CFR, CIF
  • MOQ: 1 set for customized orders
  • Payment: 30% deposit by T/T, balance before shipment
  • Delivery: Ready within 10 working days after deposit
  • Warranty: 30 years
  • Surface Treatment: Hot dip galvanization standard

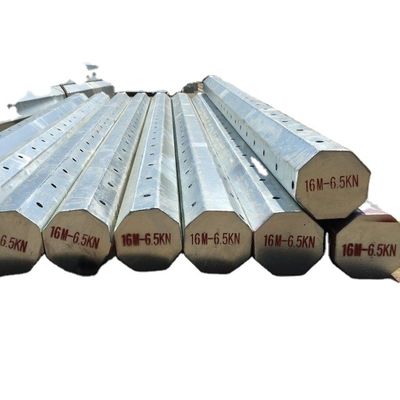

Our Services
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 5
Pre-Sales Service
  • Inquiry and consulting support
  • 24-hour response time
  • Factory visits available
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 6
After-Sales Service
  • Installation training
  • Inspection reports and material certificates provided

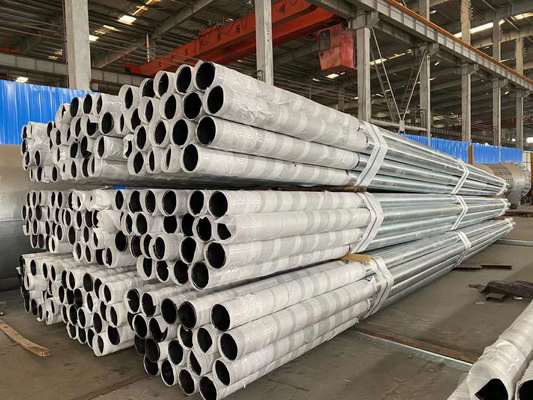

Packaging & Shipping
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 7
Type Quantity
40&45FT Electric poles for Philippine Market 26 Tons/40HQ Containers
35FT Electric poles for Philippine Market 26 Tons/40HQ Containers
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 8
About Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and street/road lighting applications. With export experience since 1991, our poles have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines 9
