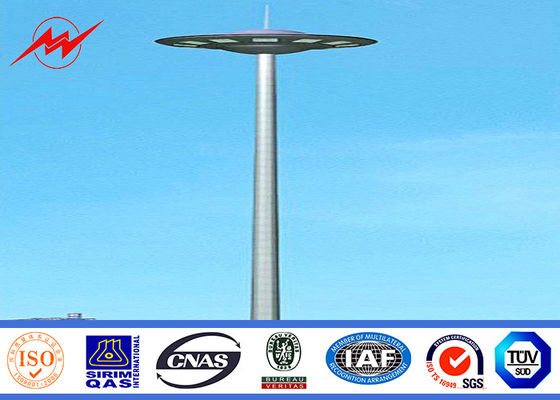

35M S355JR Round Galvanized Stadium High Mast Pole With 400kg Rasing Lifting System
Sourced from trusted vendors of market, the offered High Mast Poles are made available in several specifications as per the requirements of our clients. These poles are highly demanded in various construction sites, highways, road intersections and play grounds for providing multi-directional light with equal intensity.
Features:
Excellent brightness
Easy installation
Long operational life
Energy efficient
Quick Product Description-High Mast Lighting Pole
| Item |
25 MTR |
| Material Construction |
Q345(Gr50) |
| Cross section of mast in polygon((No. of Sides) |
dodecagon,hexadecagon |
| Thickness |
4mm,6mm,8mm,10mm or customized design |
| Base & Top dia (OAF) |
485/200mm |
| Thickness of galvanization(Average) |
86 Microns |
| Size of opening door at base |
360 x 1400 mm |
| Size of base plate diameter |
685 mm |
| Size of base plate thickness |
32 mm |
| Number of foundation bolts |
12 |
| Bolt diameter |
28 mm |
DESIGN
ACCESSORIES
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Lower Device
Application
Any large area requiring lighting with the minimum of poles.
Airports
Habours
Highway
Sports ground
Parking Lots
Company Information
Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.
We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:
lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.
The entire range of equipment is manufactured using superior quality raw material and ensures reliability.
These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
